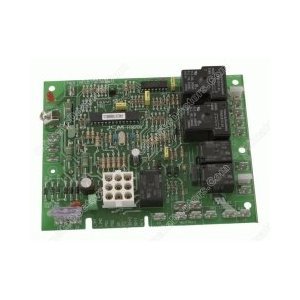

ICM280 Goodman Furnace Control Circuit Board FEATURES Includes flash code diagnostics. Twinning. Includes mounting hole template. Fused to protect low voltage system transformers. Adjustable blower relay. 90+ furnace option. SPECIFICATIONS Operating ...
Features
 |  Publisher : ICM Company : ICM Our Price: $71.98 |
Features
- Furnace circuit board control
- Adjustable blower relay
- Flash code diagnostics.
- Includes connector, wiring and instructions
- Fused to protect low voltage system transformers
Product Description
ICM280 Goodman Furnace Control Circuit Board FEATURES Includes flash code diagnostics. Twinning. Includes mounting hole template. Fused to protect low voltage system transformers. Adjustable blower relay. 90+ furnace option. SPECIFICATIONS Operating Temperature . .-40 to 176F Humidity Range . . 95% RH (non-condensing) Mounting . . . Plastic standoffs Electrical Ratings @ 77F (25C) Input Voltage . . . 20-30 VAC RMS 50/60 Hz Maximum Input Current @ 30 VAC 0.35 amp Relay Load Ratings Valve Relay 1.5 amp @ 30 VAC 50/60 Hz 0.6 pf Ignitor Relay . . . 5.0 amp @ 120 VAC 50/60 Hz Inducer Relay . . . 4.0 FLA-8.0 LRA @ 120 VAC Circulator Relay . . .14.5 FLA-25.0 LRA @ 120 VAC Flame Current Requirements Minimum current to insure flame detection . . . 75 uA DC Maximum current for non-detection . . . . . . . . 0.10 uA DC Maximum allowable leakage resistance . . . . . 100 M ohms
